At Toolingsun, we understand that precise and thoughtful mold design is crucial to the quality and efficiency of manufacturing processes. One essential aspect of mold design that often goes underappreciated is the strategic clearance between components. Clearance is the gap or space designed between various parts of the mold to allow for proper movement, alignment, and functioning. Properly calculated clearances ensure that the mold operates smoothly and the assembly process is efficient, which ultimately impacts the longevity of the mold and the quality of the final product. In this blog, we’ll explore the importance of creating strategic clearance in mold design, highlighting the key components that require this clearance and the best practices we follow here at Toolingsun to achieve precision in every mold we manufacture.
Why Is Strategic Clearance Important in Mold Design?
The accuracy and planning of clearance play a fundamental role in several aspects of the mold-making process. Strategic clearance ensures that each component of the mold can move freely without interference or excessive friction. This allows the mold to open and close correctly, eject the molded parts efficiently, and withstand the forces generated during the injection molding process. Without the right clearance, you could face issues such as misalignment, wear and tear on parts, difficulty in assembly, and potential product defects.
At Toolingsun, we prioritize this aspect of mold design to ensure that all molds meet the highest standards of performance, longevity, and efficiency. Whether it’s for a small, intricate part or a large, complex assembly, we meticulously calculate the clearance for each component to ensure optimal functioning throughout the mold’s lifecycle.
Key Components Requiring Strategic Clearance in Mold Design
Several components in plastic mold design require precise clearance to ensure smooth operation. Let’s take a closer look at some of the most critical elements that need attention:
Flange and Sprue Bushing
One of the most important parts of the mold, the flange, is responsible for securing the mold halves together. It is crucial to maintain the right clearance between the flange and the top clamp plate. At Toolingsun, we ensure that the flange has a unilateral clearance of 0.1mm with the top clamp plate. This clearance is essential to prevent any friction or binding that could cause problems during the molding process.

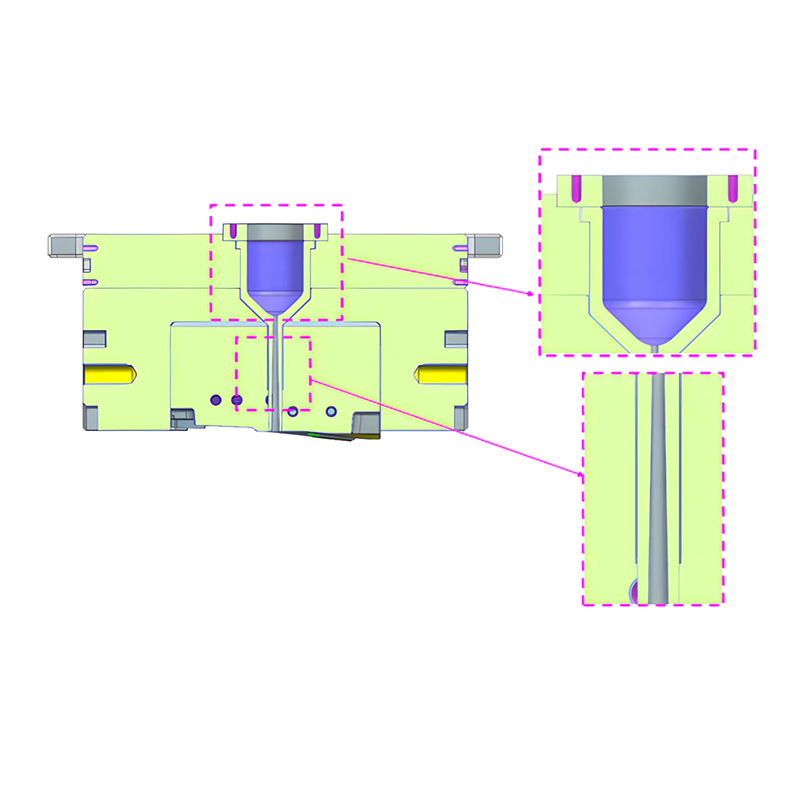

Similarly, the sprue bushing, which is used to guide the injection material into the mold cavity, needs to be positioned correctly to ensure proper flow and sealing. A unilateral clearance of 0.5mm is maintained between the sprue bushing and its mounting plate, as well as between the sprue bushing and the mold base. Additionally, we reserve a 20mm clearance within the mold cavity itself to accommodate the sprue bushing for effective sealing during the molding process.
Support Pillars and Ejector Components

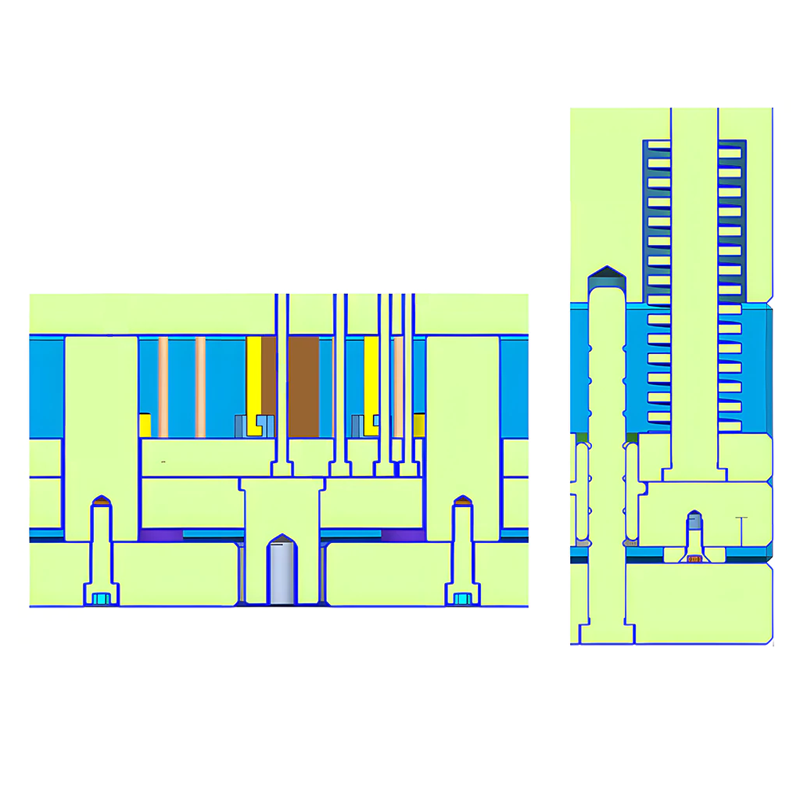

Support pillars, ejector blocks, and spring holes require careful clearance calculations to facilitate their movements and functions. For support pillars with a diameter of less than 50mm, Toolingsun ensures a unilateral clearance of 2mm, while for those with a diameter greater than 50mm, a 3mm clearance is necessary to ensure proper spacing for the mold’s mechanical movements.
When designing ejector components, such as ejector pin through-holes on the B-plate and ejector retainer plates, we follow a clearance standard of 0.5mm. This provides sufficient space for the ejector pins to move freely without obstruction, reducing the risk of part misalignment or failure. The spring holes located on the B-plate also require a clearance of 0.5-1mm, ensuring the proper function of the mold’s spring system.
Slider Angle Pins and Slide Locking Blocks
The slider angle pin plays a critical role in guiding the slider during the molding process. To ensure proper movement and alignment, Toolingsun designs the slider angle pin with a unilateral clearance of 0.5mm with its corresponding hole. If the pin extends into the B-plate, a 2mm clearance is maintained to allow for unobstructed movement.

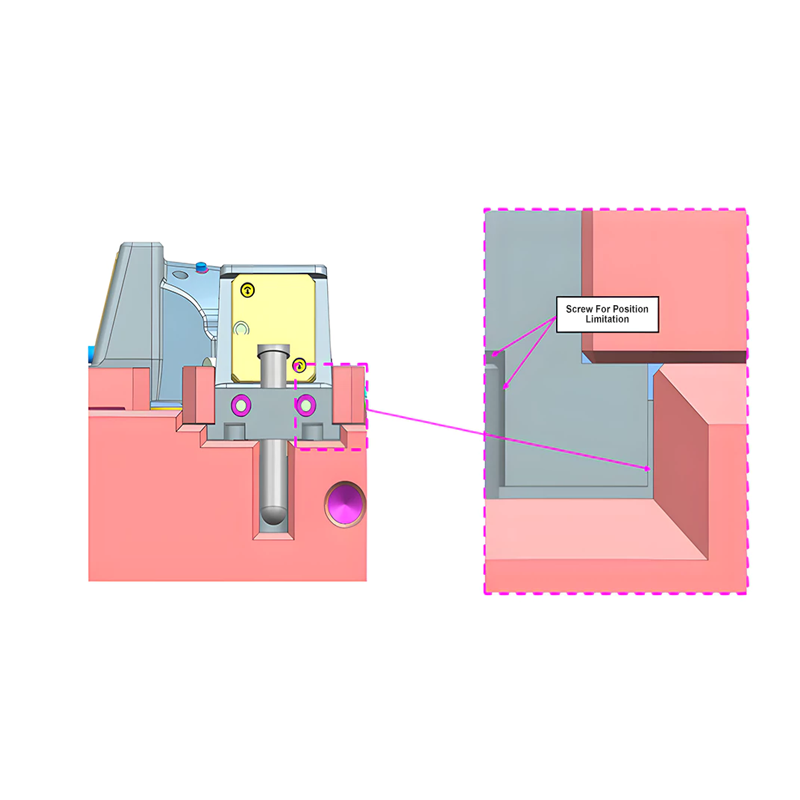

Another key component is the slide locking block, which must fit smoothly with the B-plate. We ensure that the slide locking block has a sliding fit with the B-plate and a unilateral clearance of 0.5mm. Additionally, limit screws, which are used to restrict the movement of the slides, are designed with a 1mm clearance on both sides and a 2mm clearance at the top to ensure optimal functionality.
Angled Ejectors and Mold Plates

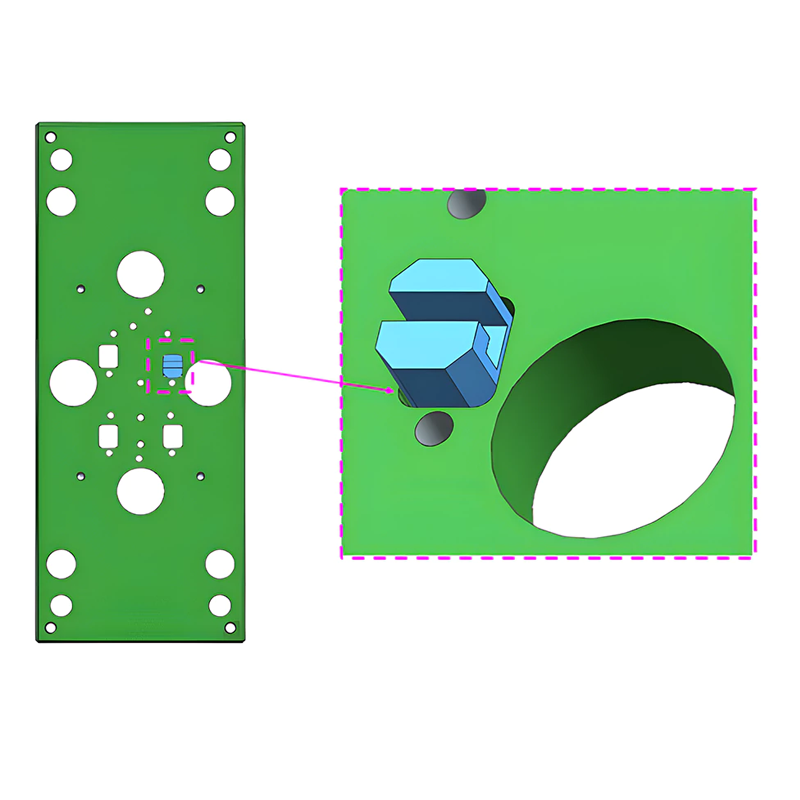

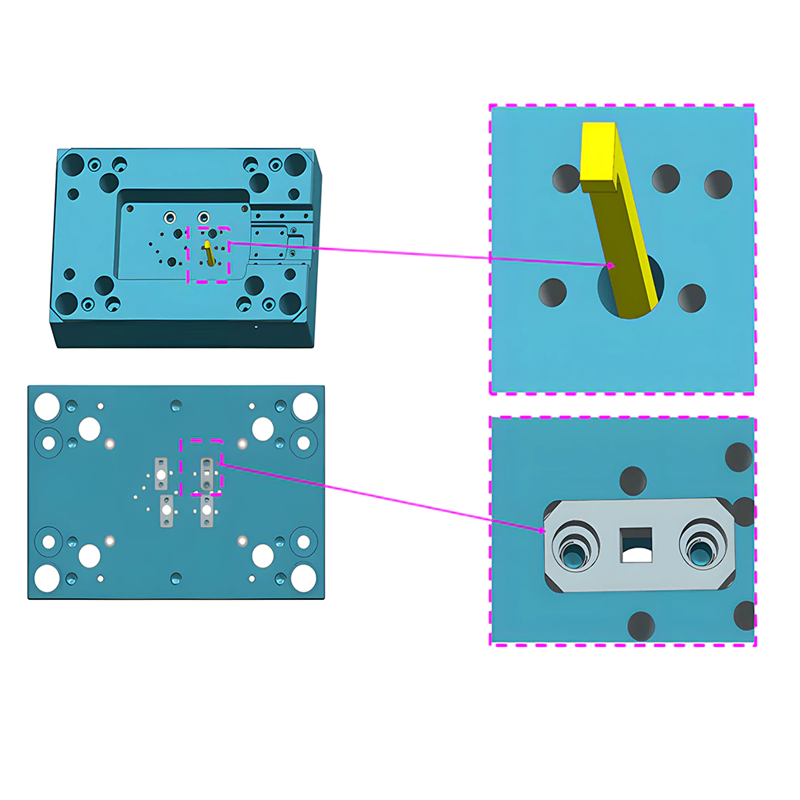

Angled ejectors, which are often used to eject parts at an angle for more efficient release, require precise clearance to avoid interference with the B-plate. At Toolingsun, we typically use wire-cut round holes or milling to create clearance for these ejectors, ensuring that the ejector moves smoothly and does not cause damage to the mold components.
The guide blocks used for angled ejectors, often made of durable materials like bronze, are designed with a C-angle and rounded corners to ensure there’s adequate clearance with the B-plate. This method facilitates CNC machining, making the mold manufacturing process more efficient and accurate.
Toolingsun’s Commitment to Precision in Mold Design
At Toolingsun, we pride ourselves on our ability to design molds with precision and efficiency. Our team of experienced engineers and designers works diligently to ensure that every mold we create meets the highest standards of quality. We understand that the right clearance is essential for the longevity and performance of the mold, which is why we pay meticulous attention to detail when designing every component.
We use advanced software and cutting-edge technology to calculate clearances accurately, ensuring that each mold operates seamlessly. Our goal is not just to produce molds but to create tools that contribute to the overall efficiency of your manufacturing process. Whether you require standard injection molds or custom solutions, we work closely with you to understand your unique needs and deliver high-quality, reliable molds.
Conclusion: The Importance of Strategic Clearance in Mold Design
In summary, strategic clearance is a critical factor in the design and manufacturing of high-quality plastic molds. By maintaining the correct clearances for various components, we ensure smooth operation, reduced wear and tear, and enhanced efficiency throughout the mold’s lifecycle. At Toolingsun, we are dedicated to providing our clients with precise, reliable, and efficient mold designs that enhance the overall manufacturing process.
If you’re looking for a mold-making partner that understands the importance of strategic clearance and offers advanced design solutions tailored to your needs, don’t hesitate to reach out to us. Our team at Toolingsun is here to help you create molds that deliver exceptional performance and durability, ensuring the success of your products. Contact us today to learn more about our services and how we can support your next project!
